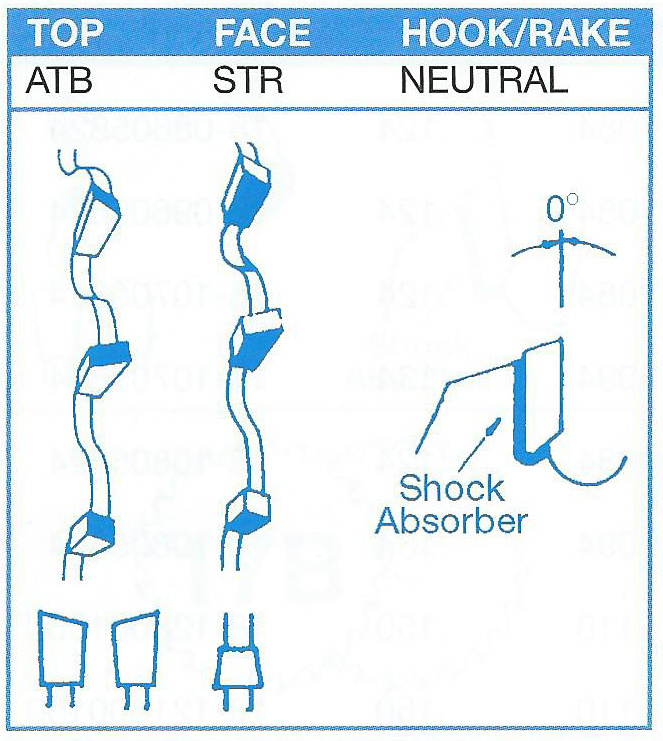

19A – Insulated Doors
Designed to cut tubes, profiles, insulating boards and chipboards with thin metals on both sides.
[table]
DIA.”,Teeth,Bore”,Plate”,Kerf”,Item No.
7,36,20mm,.062,.088,19A-07362088
8,40,5/8,.084,.100,19A-084058100
9,50,5/8,.084,.104,19A-09505804
10,48,30mm,.084,.108,19A-10483008
10,60,5/8,.084,.108,19A-10605808
10,70,5/8,.084,.108,19A-10705808
12,80,1,.094,.118,19A-12800118
14,100,1,.110,.134,19A-141000134
[/table]
Recommended RPM for:
10″ Dia. – 1700
12″ Dia. – 1500
14″ Dia. – 1250
19B – Rail-Ways

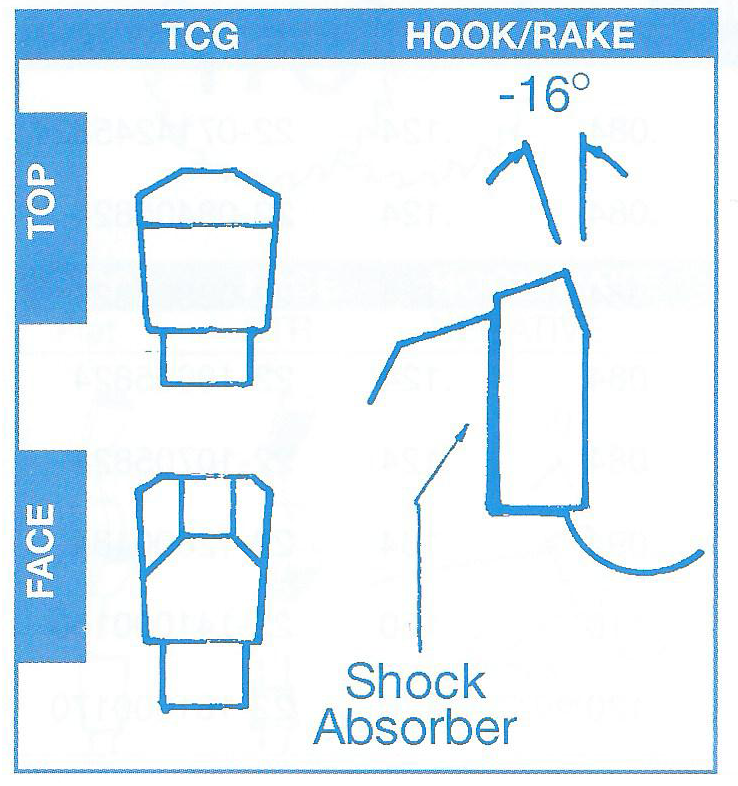

Style: Triple chip grind on face and top designed for CNC controlled rail-way cutting machines.
[table]
DIA.”,Teeth,Bore”,Plate”,Kerf”,Item No.
26,70,5 1/2,.190,.240,19B-267055240
28,70,5 1/2,.190,.240,19B-287055240
[/table]
Made to Order.
Operating Speed 400 RPM
