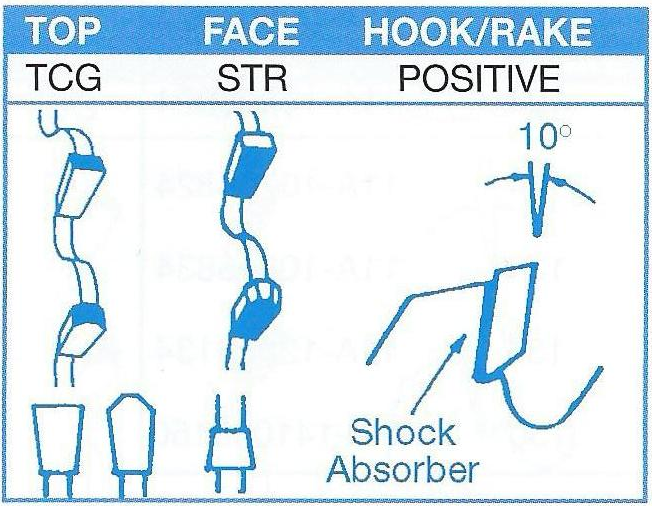

13 – Horizontal
For chipboards, plastic-laminated panels, plywood.
[table]
DIA. mm,Teeth,Bore mm,Plate mm,Kerf mm,Item No.
300,72,30,2.5,3.5,13-300723035
400,72,75,3.2,4.4,13-400727544
450,72,80,3.2,4.4,13-450728044
14″,100,1″,.095″,.135″,13-14100135
[/table]

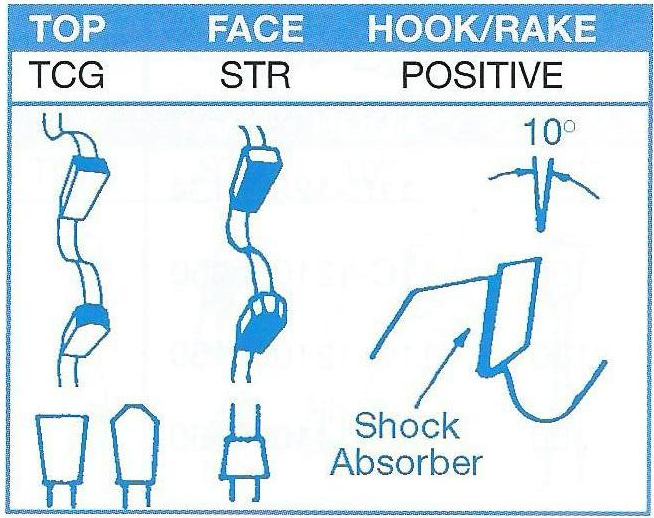

15 – Vertical
For plywoods, plastic-laminated panels and chipboards. Works with a built-in underscoring unit.
[table]
DIA. mm,Teeth,Bore mm,Plate mm,Kerf mm,Item No.
220,64,1,.084,.120,15-220640120
220,64,30mm,.084,.120,15-220643020
[/table]
